We are keen to grasp the future direction and pursue the perfection of our steel wire mesh welding machine and services as well as the perfection of our company itself, hoping to become the number one brand in the industry. Excellent talents are the cornerstone to achieve the strategic goals of the company and the driving force for the sustainable development of the company. We continue to improve the environmental management system and form a closed-loop management of energy conservation and emission reduction. Comprehensive facts is often obtained in our web-site and you'll be served with premium quality consultant service by our after-sale group.
Quick Details
|
Condition |
New |
|
Machine Type |
Wire Mesh Welding Machine |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Marketing Type |
New Product 2020 |
|
Warranty of core components |
2 years |
|
Core Components |
PLC, Motor, Servo Motor |
|
Wire Diameter (mm) |
2.5 - 6 mm |
|
Production Capacity |
40 |
|
Place of Origin |
Hebei, China |
|
Brand Name |
Wanzhong |
|
Model Number |
WZ-2500A |
|
Weight (KG) |
3500 |
|
Power (kW) |
4 |
|
Key Selling Points |
Competitive Price |
|
Warranty |
2 years |
|
Applicable Industries |
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Retail, Construction works , Energy & Mining, wire mesh welding machine |
|
Showroom Location |
Kenya, UAE, Algeria, South Africa, Uzbekistan, Malaysia, Viet Nam, Philippines, Peru, India, Mexico, Russia, Thailand |
|
After-sales Service Provided |
Engineers available to service machinery overseas, Free spare parts, Online support, Video technical support, Field installation, commissioning and training, Field maintenance and repair service |
|
Name |
welded wire mesh machine |
|
Wire Diameters |
2.5-6.0mm |
|
Mesh Size |
50*50*250*250MM |
|
Max Mesh Width |
2500mm |
|
Usage |
PRODUCE BRICK FORCE MESH |
|
Function |
RESISTANCE WELDING |
|
Certification |
CE AND ISO |
|
Mesh Production |
ROLL MESH AND PLATE |
|
Power |
6*125KVA |
|
After Warranty Service |
Video technical support, Online support, Spare parts, Field maintenance and repair service |
|
Local Service Location |
Malaysia, Kenya, UAE, Algeria, South Africa, Uzbekistan, Viet Nam, Philippines, Peru, India, Mexico, Russia, Thailand |
Supply Ability
Supply Ability: 40 Set/Sets per Month welded wire mesh machine
Packaging & Delivery
Packaging Details
1.Main machine and accessory equipment will be packed with sketch film paper;

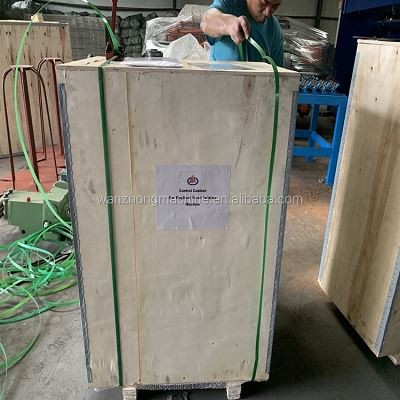

2.Control cabinet and spare parts will be packed with the wooden box;

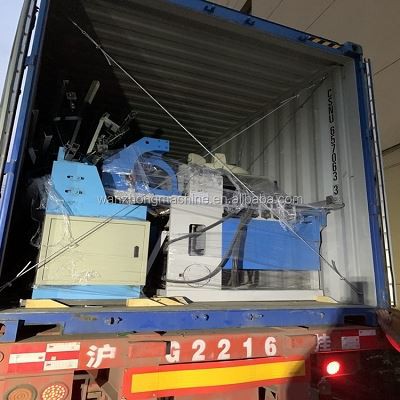

3.Finally all the machines will be fixed with hornwoods and steel oil wire rope, ensure them stable and not move in the container.
Port: TIANJIN PORT OR CUSTOMIZED
Picture Example:
 |
 |
Lead Time:
| Quantity(Sets) | 1 - 1 | 2 - 2 | >2 |
| Est. Time(days) | 20 | 20 | To be negotiated |
BRC Welded BRC Reinforcing Steel Wire Mesh Welding Machine
Product Description
WZ-2500A Construction Mesh Welding Machine Most Popular Parameters:
|
No. |
Item |
Specification |
|
1 |
Welding Wire Diameter |
Φ2.5-6.0(mm) |
|
2 |
Cross Wire Space |
50-250mm(adjustable) |
|
3 |
Line Wire Space |
50-250mm(adjustable) |
|
4 |
Mesh Width |
2500mm |
|
5 |
Finished Products |
construction mesh plate and roll mesh |
|
6 |
Number of Electrodes |
48 |
|
7 |
Welding Speed |
0-80times/min |
|
8 |
Rated Voltage |
Three phase, 380V, 50HZ or customized |
|
9 |
Rated Power |
125KWA*4 (Water cooling system) |
|
10 |
Main Motor |
4.0KW (Electromagnetic Brake Motor) |
|
11 |
Welding Time |
10ms-100ms |
|
12 |
Welding Way |
By Control Silicon Control Electric Resistance Weld |
|
13 |
Pressure Mode |
Adjustable Spring Pressure |
|
14 |
Weight |
About 3.5 T |
|
15 |
Overall Dimension |
5500*3200*1800m |
Composition of Whole Production Line:
|
No. |
Name of each part |
Quantity/Set |
|
1 |
Main Mesh Welding Machine |
1 |
|
2 |
Cross Wire Automatic Falling Hopper |
1 |
|
3 |
Servo Motor Pulling Mesh Device |
1 |
|
4 |
Operation Control Cabinet |
1 |
|
5 |
Wire Straightening and Cutting Machine |
2 |
|
6 |
Level Spare Parts Box |
1 |
|
7 |
Water Circle Pump |
1 |
|
8 |
Repairing Mesh Machine |
1 |
|
9 |
Cooling Water System |
1 |
|
10 |
Installing Tool |
1 |
|
11 |
Equipment Operation and Maintenance Manual |
1 |
Function features and advantages
1. This welded wire mesh machine adopts electrical & electronic synchronous control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, press at one time, separate welding.
2. The line wire is fed from coil wires; the cross wire is pre-cut, fed from hopper driven by step motor.
3. Mesh pulling system adopts servo motor back and forward, adjusting the cross space by setting the parameters on the touch screen,different from traditional mechanical adjustment.
4. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.
5. The finished products can be roll mesh or panel.
