Our cage mesh welding machine are of excellent quality and reasonable price, and are deeply loved by consumers in the market. Our company is good at providing full-effect, optimized and systematic solutions related to our products. We create, discover and meet the market demand and customer needs by responding to the market operation with agility. We use scientific statistical analysis methods to segment customers and formulate service standards for different types of customers.
Quick Details
|
Condition |
New |
|
Machine Type |
Wire Mesh Welding Machine |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Marketing Type |
New Product 2020 |
|
Warranty of core components |
2 years |
|
Core Components |
PLC, Motor |
|
Wire Diameter (mm) |
2.2 - 3.5 mm |
|
Production Capacity |
40 sets |
|
Place of Origin |
Hebei, China |
|
Brand Name |
Wanzhong |
|
Model Number |
WZ-1200B |
|
Weight (KG) |
3200 |
|
Power (kW) |
3.0 |
|
Key Selling Points |
Competitive Price |
|
Warranty |
2 years |
|
Applicable Industries |
Manufacturing Plant, Farms, Retail, Construction works , Energy & Mining |
|
Showroom Location |
Kenya, Chile, UAE, Algeria, South Africa, Kyrgyzstan, Uzbekistan, Malaysia, Viet Nam, Philippines, Peru, Indonesia, Pakistan, India, Mexico, Russia, Thailand |
|
After-sales Service Provided |
Engineers available to service machinery overseas |
|
welding diameter |
2.0mm-4.0mm |
|
welding width |
1000mm-1500mm |
|
welding speed |
60times/min |
|
rated power |
100KVA x 3 |
|
Dimension |
1800x2500x1800mm |
|
weight |
3.2T |
|
Name |
bird cage and breeding mesh welding machine |
|
Material |
galvanized wire or low carbon steel wires |
Supply Ability
Supply Ability: 35 Set/Sets per Month cage mesh welding machine

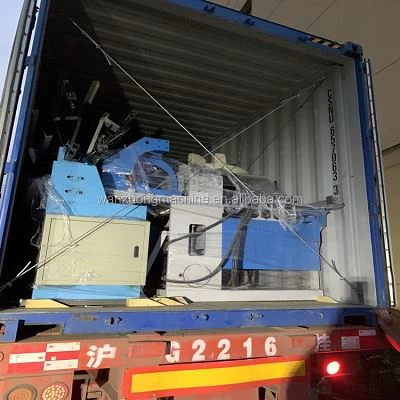

Packaging & Delivery
Packaging Details
1.Main machine and accessory equipment will be packed with sketch film paper;
2.Control cabinet and spare parts will be packed with the wooden box;
3.Finally all the machines will be fixed with hornwoods and steel oil wire rope, ensure them stable and not move in the container.
Port: Xingang, China
Picture Example:
 |
 |
Lead Time:
| Quantity(Sets) | 1 - 1 | 2 - 2 | >2 |
| Est. Time(days) | 25 | 25 | To be negotiated |

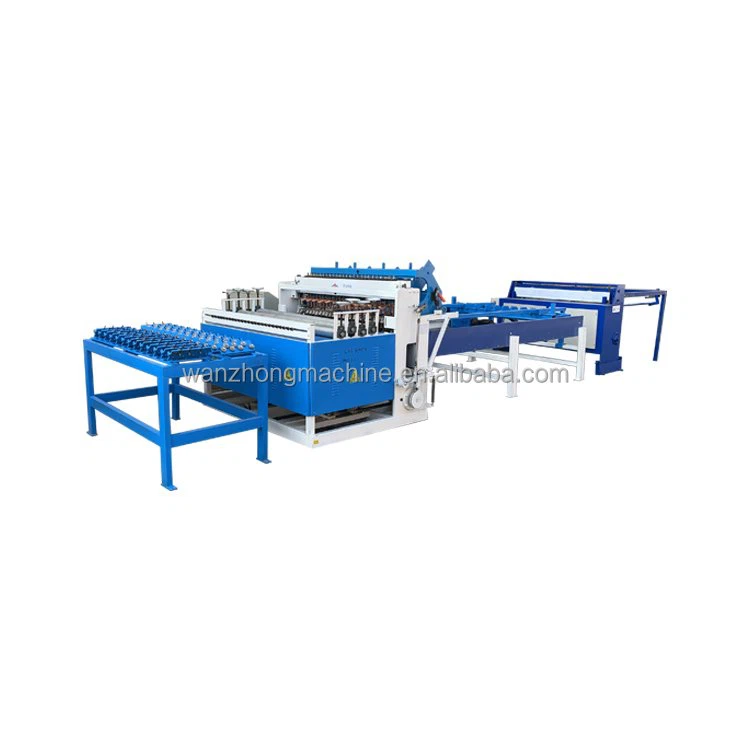

bird cage and breeding mesh welding machine
Function features and advantages:
1. The machine adopts electrical & electronic synchronous control technique, both separate-phase welding and welding time composed of digital and integrated electric circuit, high precision, stable performance, solid welding joint and no burn marks.
2. Weft is pre-straightened and pre-cut, fed from hopper. The hopper is driven by stepper motor, accurately auto-feeding wire.
3. The warp is fed from coil. The mesh edge is regular, unnecessary to slice.
4. Mesh pulling system adopts elastic tension link and opening positioning equipment, the opening is easy to regulate accurately and can be adjusted freely within a certain range.
5. The finished products can be in coil or in panel.
6. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.
Main parameter:
|
Item |
WZ1200 |
WZ1500 |
|
Number of Electrodes |
24 |
30 |
|
Max Mesh Width |
1200mm |
1600mm |
|
Wire Diameter |
2.0-4.0mm |
2.0-4.0mm |
|
Cross Wire Space |
25-200mm |
25-200mm |
|
Line Wire Space |
50-200mm |
50-200mm |
|
Rated Power |
100KWA*3 |
100KWA*4 |
|
Welding Speed |
40-60times/min |
40-60times/min |
|
Control System |
PLC |
PLC |
Products & Application:
The machine is mainly used to manufacture chicken cage, rabbit cage, mink cage, fox cage, pet cage and other breeding cages.
Packaging & Shipping
Our Services
Company Information
We always pursue the exquisite and delicate cage mesh welding machine, smart and strong staff, and meticulous and meticulous work. We are full of confidence in the pursuit of the cause and, under the inspiration of common ideals, we are of one heart and one mind to gather wisdom and strength for the development of the enterprise. We guide employees to love their jobs, have a sense of happiness and pride in the work they do, and motivate them to work diligently.
Hot Tags: poultry cage mesh welding machine, China, suppliers, manufacturers, factory, buy, price, quotation, for sale, made in China
