We uphold the tradition of independent innovation and the pursuit of excellence, and continue to conduct technological research and development in the field of poultry mesh welding machine for key user applications. We believe that service is the process of learning, innovation and creation. With the aim of leading product quality, customer service first, and integrity management first, we provide customers with the highest quality products and the most satisfactory service. We actively implement enterprise reform and restructuring, and accelerate the pace of enterprise transformation and development.
Main Parameters:

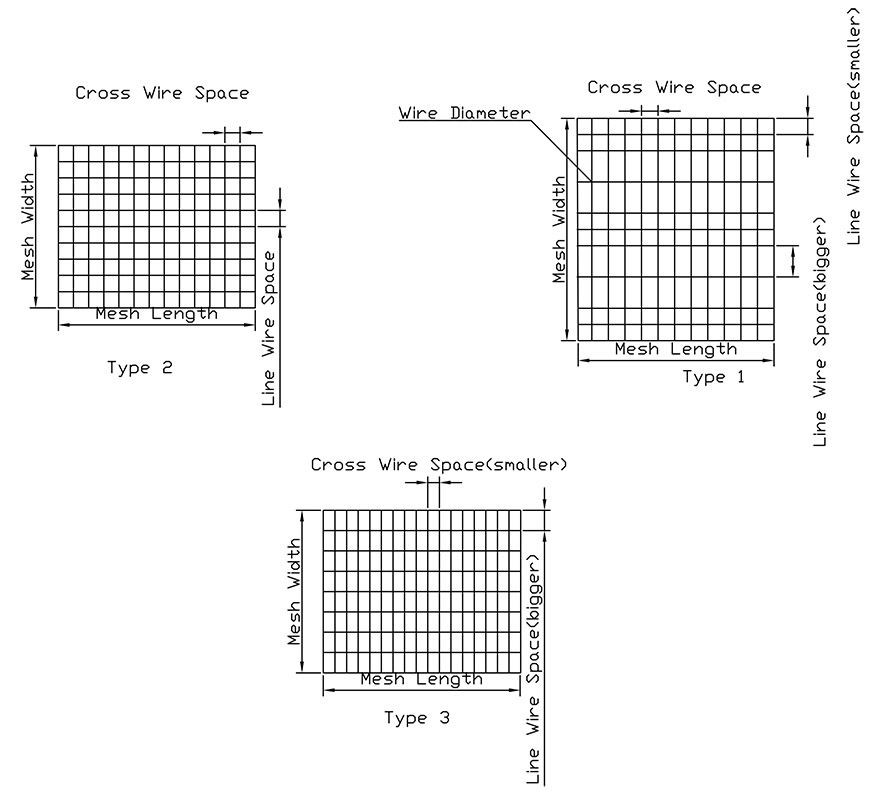

| Item | WZ-1200A | WZ-1500A |
| Number of Electrodes | 24 | 30 |
| Max.Mesh Width | 1200mm | 1500mm |
| Steel Wire Diameter | 2.0-4.0mm | 2.0-4.0mm |
| Mesh Length | 300-3000m | 300-3000m |
| Cross Wire Space | 50-300mm | 50-300mm |
| Line Wire Space | 50-300mm | 50-300mm |
| Line Wire Feeding Way | Coil Wires | |
| Cross Wire Feeding Way | Pre-cut Wires,By the Special Electric Hopper | |
| Electric Capacity | 100KVA*3 | 100KVA*4 |
| Welding Speed | 50-80t/min | 50-80t/min |
| Control System | PLC control and Touch Screen | |
Function features and advantages:
1. This machine adopts electrical & electronic synchronous control technique, both separate-phases welding and welding time composed of digital and integrated electric circuit, more intelligent and rational, press at one time, separate welding.
2. The line wire is fed from coil wires; the cross wire is pre-cut, fed from automatically from the special hopper by step motor and put accurately and stably.
3. Mesh pulling system adopts servo motor back and forward, adjusting the cross space by setting the parameters on the touch screen, which not only improves the accuracy of mesh size, but also ensures the adjustment of the distance between the cross wires space.
4. Welding speed is high, it is very simple and easy to operate, only two persons are enough, The finished products can be roll mesh or panel.
Our company's poultry mesh welding machine pay attention to details and quality, and strictly abide by the high standards of the international market. We sincerely hope to provide products and services for our customers with our professional technology and responsible and rigorous attitude. We celebrate our successes, but at the same time, we are brave enough to recognize our shortcomings.
