We know that we only thrive if we can guarantee our combined price competiveness and quality advantageous at the same time for welded wire mesh production line. We have a complete and scientific quality management system, and are recognized by the industry by virtue of our integrity, strength and product quality. The company has won the recognition of more and more Chinese and foreign customers with its excellent product quality, perfect after-sales service, and appropriate problem solutions for customers. Relying on the unique cutting-edge technology and professional experience in each business field, the company manufactures various household, commercial and industrial air-conditioning products.
Quick Details
|
Place of Origin |
Hebei, China |
|
Brand Name |
Wanzhong |
|
Condition |
New |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Marketing Type |
New Product 2020 |
|
Warranty of core components |
2 years |
|
Core Components |
PLC, servo motor |
|
Warranty |
2 years |
|
Applicable Industries |
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Retail, Construction works , Energy & Mining, High quality welded wire mesh machine |
|
Showroom Location |
United States, Viet Nam, Philippines, Mexico, Russia, Kenya, UAE, Algeria, Uzbekistan, Malaysia |
|
Name |
automatic welded wire mesh machine price |
|
Wire Diameter Range |
3.0-6.0mm |
|
Cross Wire Space |
50-250mm |
|
Line wire space |
50-250mm |
|
Mesh Width |
2500mm |
|
Control Way |
PLC+touch screen |
|
Transformer |
125KVA*4 (water cooling system) |
|
Power |
4KW |
|
Material |
Carbon steel wire or galvanized wire or deformed wires |
|
Voltage |
380v/50HZ(as Customers' Request ) |
|
After-sales Service Provided |
Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support |
|
After Warranty Service |
Video technical support, Online support, Spare parts, Field maintenance and repair service |
|
Local Service Location |
Viet Nam, Philippines, India, Mexico, Russia, Malaysia, Kenya, UAE, Algeria, South Africa, Uzbekistan |
Supply Ability
Supply Ability: 40 Set/Sets per Month best price welded wire mesh panel machine
Packaging & Delivery
Packaging Details
1.main machine and accessory equipment will be packed with sketch film paper;
2.control cabinet and spare parts will be packed with the wooden box;
3.finally all the machines will be fixed with hornwoods and steel oil wire rope, ensure them stable and not move in the container.
Port: Tianjin Port or Customized
Picture Example:
 |
 |
Lead Time:
| Quantity(Sets) | 1 - 1 | 2 - 2 | 3 - 3 | >3 |
| Est. Time(days) | 20 | 20 | 25 | To be negotiated |

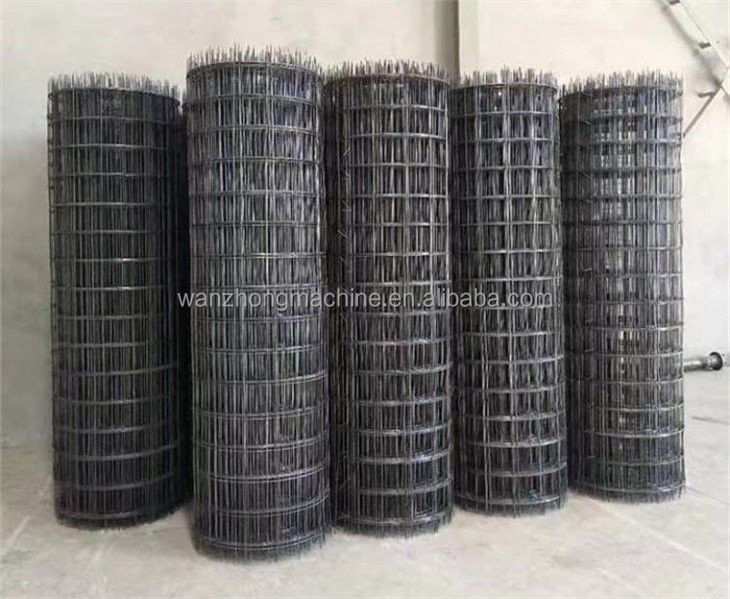

Best Quality Factory Price fully Automatic CNC Welded Wire Mesh Making Machine for Roll Mesh
Product Description
Automatical Line Wire Falling Construction Mesh Welding Machine Main Technical Parameters:
|
No. |
Item |
Specification |
|
1 |
Welding Wire Diameter |
Φ3.0-6.0(mm) |
|
2 |
Cross Wire Space |
50-250mm |
|
3 |
Line Wire Space |
100-250mm |
|
4 |
Max Mesh Width |
2500mm |
|
5 |
Finished Mesh Way |
plate mesh and roll mesh |
|
6 |
Number of Electrodes |
24 most popular or customized |
|
7 |
Welding Speed |
0-60times/min |
|
8 |
Rated Voltage |
Three phase, 380V, 50HZ or customized |
|
9 |
Rated Power |
125KWA*4(Water cooling system) |
|
10 |
Main Motor |
4KW (Electromagnetic Brake Motor) |
|
11 |
Welding Time |
10ms-100ms |
|
12 |
Welding Way |
By Control Silicon Control Electric Resistance Weld |
|
13 |
Pressure Mode |
Adjustable Spring Pressure |
|
14 |
Weight |
About 3.5 T |
|
15 |
Overall Dimension |
6800*3700*1800m |
Function features:
1.This machine cent-control and welding time are composed of PLC program system . The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, separate welding. Surely,if the power supply is enough big,it can also adopt the welding at the same time.
2.Cross hopper feeds cross wires automatically with accurate position,pre-cut line wires fall and feed automatically from the special hopper, reduces welding waiting time, feed fast and locate accurately.
3.Our transformers adopts big power at 125KVA every one,which can ensure the welding quality in good condition and adopt water cooling system.
4.The greatest advantage is that you can adjust the distance of cross wire at random on the same one piece wire mesh sheet very easily, and only need to set the any space required on the touch screen.
5.Pulling mesh way adapts servo motor back and forward according to the setting parameters into the touch screen,ensure the accurate position of the pulling mesh.
Packaging & Shipping
Our Services
Company Information
Thank you for your continuous attention and support, and customer needs are our motivation to develop excellent welded wire mesh production line and provide satisfactory services. We save many profits of middlemen and logistics circulation for customers, and the supply price is cheaper and preferential. We build a diversified product system and a differentiated service system.
Hot Tags: welded wire mesh panel machine, China, suppliers, manufacturers, factory, buy, price, quotation, for sale, made in China
