Our company keeps up with the trend of the times and launches novel series of weld mesh making machine with powerful functions to bring convenience to production. If there is anything we can do for you, we shall be more than pleased to do so. Staff is the important wealth of the company, the improvement of staff quality and professional knowledge level is the growth of the company's wealth. We continue to promote scientific and technological innovation, process innovation and product quality upgrade, so that the leading products develop in the direction of specialization, precision, special and new.
Quick Details
|
Condition |
New |
|
Machine Type |
Wire Mesh Welding Machine |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Marketing Type |
New Product 2020 |
|
Warranty of core components |
2 years |
|
Core Components |
PLC, servo motor |
|
Wire Diameter (mm) |
2 - 4 mm |
|
Production Capacity |
40 sets |
|
Place of Origin |
Hebei, China |
|
Brand Name |
Wanzhong |
|
Model Number |
poutry mesh welding machine |
|
Weight (KG) |
2500 |
|
Power (kW) |
3 |
|
Key Selling Points |
Competitive Price |
|
Warranty |
2 years |
|
Applicable Industries |
Building Material Shops, Manufacturing Plant, Farms, Construction works , Energy & Mining |
|
Showroom Location |
Kenya, UAE, South Africa, Uzbekistan, Malaysia, Viet Nam, Philippines, Peru, Indonesia, India, Mexico, Russia, Thailand |
|
After-sales Service Provided |
Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support |
|
Wire Diameter |
2.0-4.0mm |
|
Number of Electrodes |
24 |
|
Max Mesh Width |
1500mm |
|
Line Wire Space |
50-200mm |
|
Rated Power |
100KWA*3 |
|
Welding Speed |
50-80times/min |
|
Control System |
PLC and Touch Screen |
|
color |
green,blue,yellow |
|
Product name |
galvanized welded mesh panels |
|
After Warranty Service |
Video technical support, Online support, Spare parts, Field maintenance and repair service |
|
Local Service Location |
Kenya, UAE, Algeria, South Africa, Uzbekistan, Viet Nam, Philippines, Peru, Indonesia, India, Mexico, Thailand |
Supply Ability
Supply Ability: 40 Set/Sets per Month cage mesh welding machine
Packaging & Delivery
Packaging Details
1.Main machine and accessory equipment will be packed with sketch film paper;
2.Control cabinet and spare parts will be packed with the wooden box;
3.Finally all the machines will be fixed with hornwoods and steel oil wire rope,ensure them stable and not move in the container.
Port: TIANJIN PORT OR CUSTOMIZED
Picture Example:
 |
 |
Lead Time:
|
Quantity(Sets) |
1 - 1 | 2 - 2 | >2 |
| Est. Time(days) | 25 | 25 | To be negotiated |

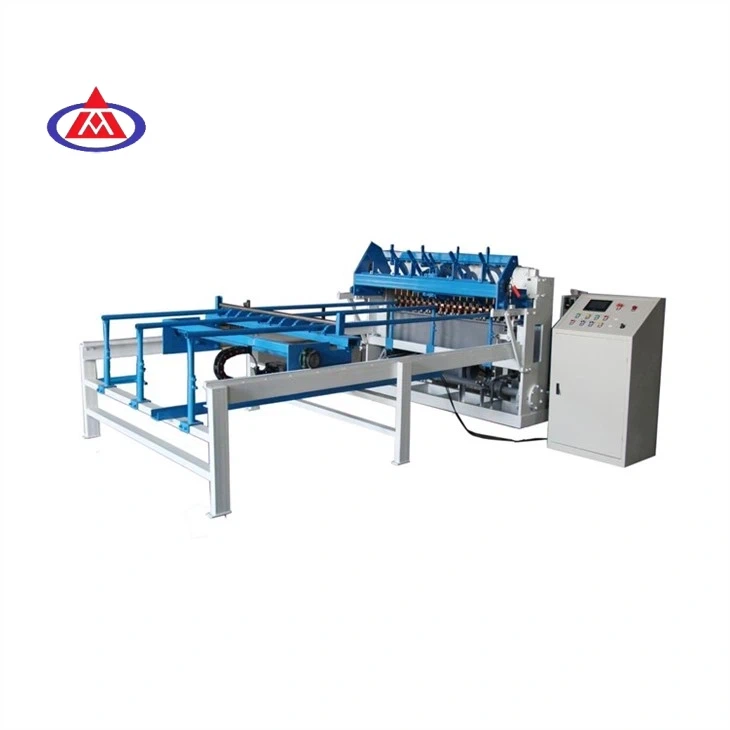

automatic welded steel wire mesh animal wire mesh machine for sale
Function features and advantages:
1. The machine adopts electrical & electronic synchronous control technique, both separate-phase welding and welding time composed of digital and integrated electric circuit, high precision, stable performance, solid welding joint and no burn marks.
2. Weft is pre-straightened and pre-cut, fed from hopper. The hopper is driven by stepper motor, accurately auto-feeding wire.
3. The warp is fed from coil. The mesh edge is regular, unnecessary to slice.
4. Mesh pulling system adopts elastic tension link and opening positioning equipment, the opening is easy to regulate accurately and can be adjusted freely within a certain range.
5. The finished products can be in coil or in panel.
6. The welding speed is fast and it is easy to learn and operate. Only two operators are enough.
Main parameter:
|
Item |
WZ-1200A |
WZ-1500A |
|
Number of Electrodes |
24 |
30 |
|
Max Mesh Width |
1200mm |
1600mm |
|
Wire Diameter |
2.0-4.0mm |
2.0-4.0mm |
|
Cross Wire Space |
25-200mm |
25-200mm |
|
Line Wire Space |
50-200mm |
50-200mm |
|
Rated Power |
100KWA*3 |
100KWA*4 |
|
Welding Speed |
50-80times/min |
50-80times/min |
|
Control System |
PLC and Touch Screen |
PLC and Touch Screen |
Products & Application:
The machine is mainly used to manufacture chicken cage, rabbit cage, mink cage, fox cage, pet cage and other breeding cages.
