Main Parameters:

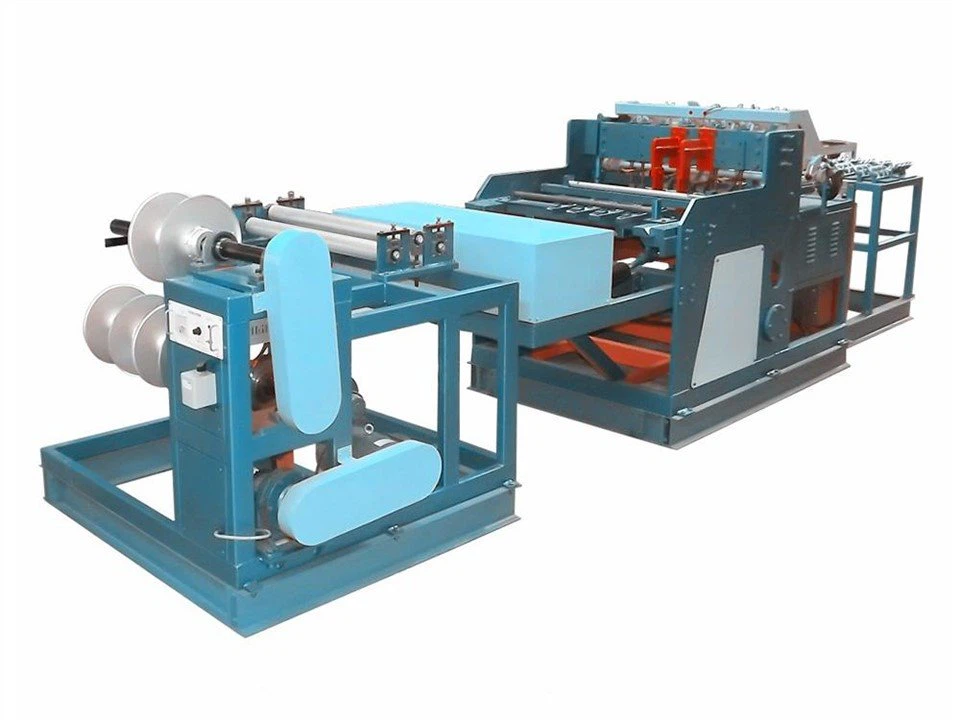

Item | Brick Force Mesh Welding Machine |
Number of Electrodes | 6 or 8 |
Max Mesh Width | 780mm |
Wire Diameter | 1.5-3.0mm |
Cross Wire Space | 250-300mm |
Line Wire Space | 75, 115, 150, 230mm |
Rated Power | 100KVA |
Welding Speed | 30-50times/min |
Control System | PLC |
Products & Application:
The machine is mainly used to manufacture brick force wire mesh, mainly used in construction fields.
Function features and advantages:
1. This machine adopts electrical synchronous control technique, both separate-phase welding and welding time is composed of digital and integrated electric circuit. This operation is highly accurate. It has a stable function, firm welded point and without welded tracks.
2. The line wire is fed from coils, the cross wire is pre-cut, fed from hopper driven by stepper motor.The machine is compact in the structure and to operate easily.
3. Mesh pulling system adopts elastic tension link and opening position equipment, the opening is easy to adjust accurately and can be adjusted freely within a certain range.
4. The finished products can be in coil or in panel automatically.
