We grasp the market trend, innovation and change, professional to create a variety of high-quality 3d Panel Fence Mesh Welding Machine. Quality assurance, credibility, and enthusiastic service are our company's consistent objectives. We are willing to provide users with personalized products and a full range of services. We actively integrate into the development of society and work together with stakeholders to promote green and sustainable development. We adhere to the concept of 'focusing on superiority and steady development', and constantly break through ourselves in the industry.
Quick Details
|
Place of Origin |
Hebei, China |
|
Brand Name |
Wanzhong |
|
Condition |
New |
|
Machine Type |
wire mesh making machine |
|
Video outgoing-inspection |
Provided |
|
Machinery Test Report |
Provided |
|
Marketing Type |
New Product 2020 |
|
Warranty of core components |
2 years |
|
Core Components |
PLC, Motor |
|
Warranty |
2 years |
|
Key Selling Points |
Competitive Price |
|
Applicable Industries |
Building Material Shops, Manufacturing Plant, Construction works , Energy & Mining |
|
Showroom Location |
Kenya, Chile, UAE, Algeria, South Africa, Uzbekistan, Malaysia, Viet Nam, Philippines, Brazil, Peru, India, Mexico, Russia, Thailand |
|
After-sales Service Provided |
Engineers available to service machinery overseas, Free spare parts, Online support, Field installation, commissioning and training, Field maintenance and repair service, Video technical support |
|
Cross Wire Space |
50-250mm |
|
Line Wire Space |
50-250mm |
|
Welding Wire Diameter |
3.0-6.0(mm) |
|
welding speed |
0-70times/min |
|
welding spot |
48/51 |
|
rated voltage |
380V, 50HZ, 415V, 50Hz, Three phase;440V, 60Hz, Three phase |
|
rated power |
125KWA*6(water cooling system) |
|
Max Mesh Width |
2500mm or 3000mm adjustable |
|
Name |
3d fence mesh welding machine |
|
After Warranty Service |
Video technical support, Online support, Spare parts, Field maintenance and repair service |
|
Local Service Location |
Malaysia, Kenya, UAE, South Africa, Kazakhstan, Uzbekistan, Viet Nam, Philippines, Brazil, Peru, Indonesia, India, Mexico, Russia, Thailand |
Supply Ability
Supply Ability: 40 Set/Sets per Month 3d fence mesh welding machine

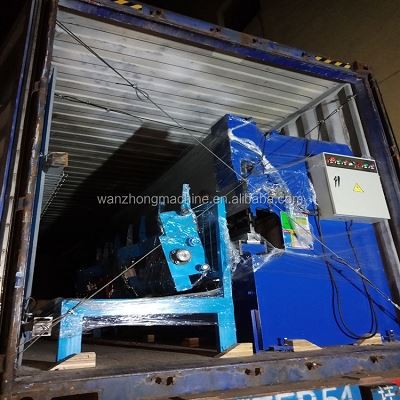

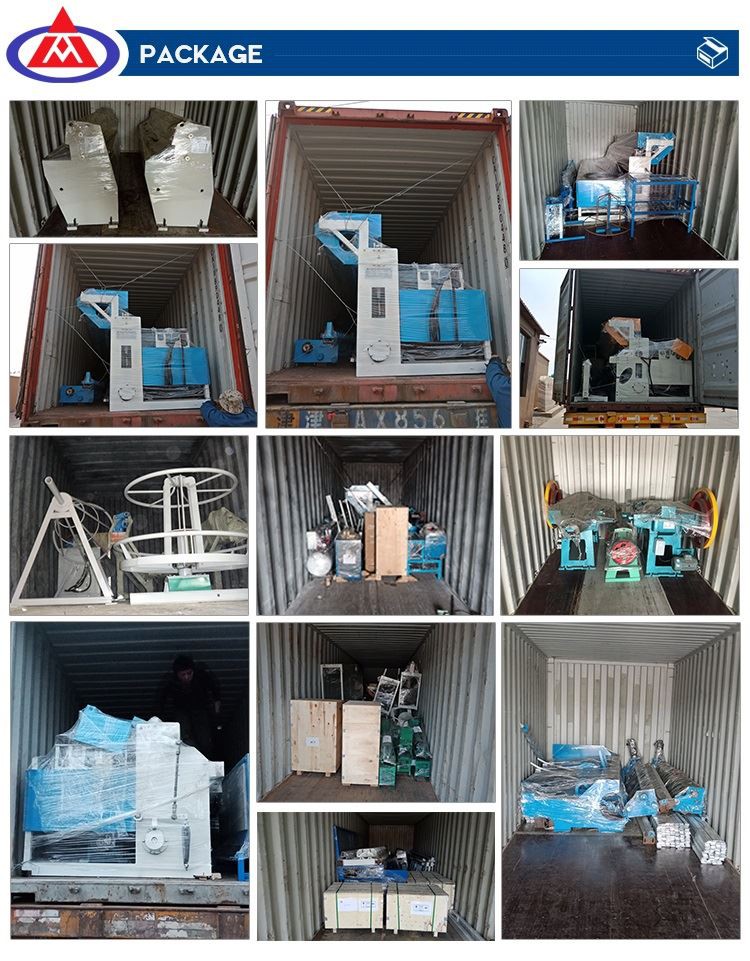

Packaging & Delivery
Packaging Details
1.Main machine and accessory equipment will be packed with sketch film paper;
2.Control cabinet and spare parts will be packed with the wooden box;
3.Finally all the machines will be fixed with hornwoods and steel oil wire rope, ensure them stable and not move in the container.
Port: Tianjin port or customized

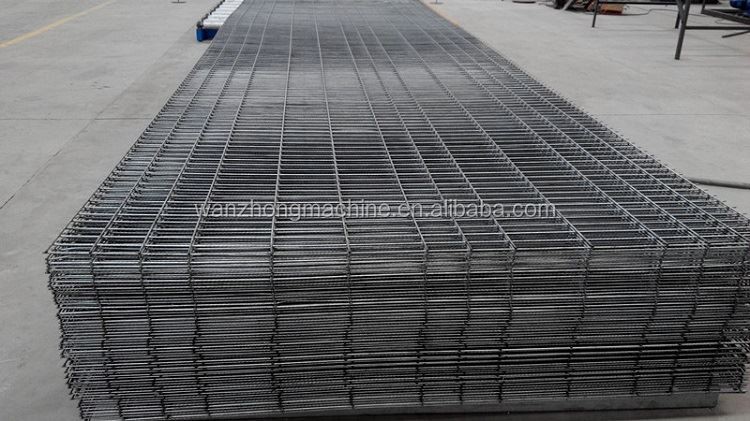

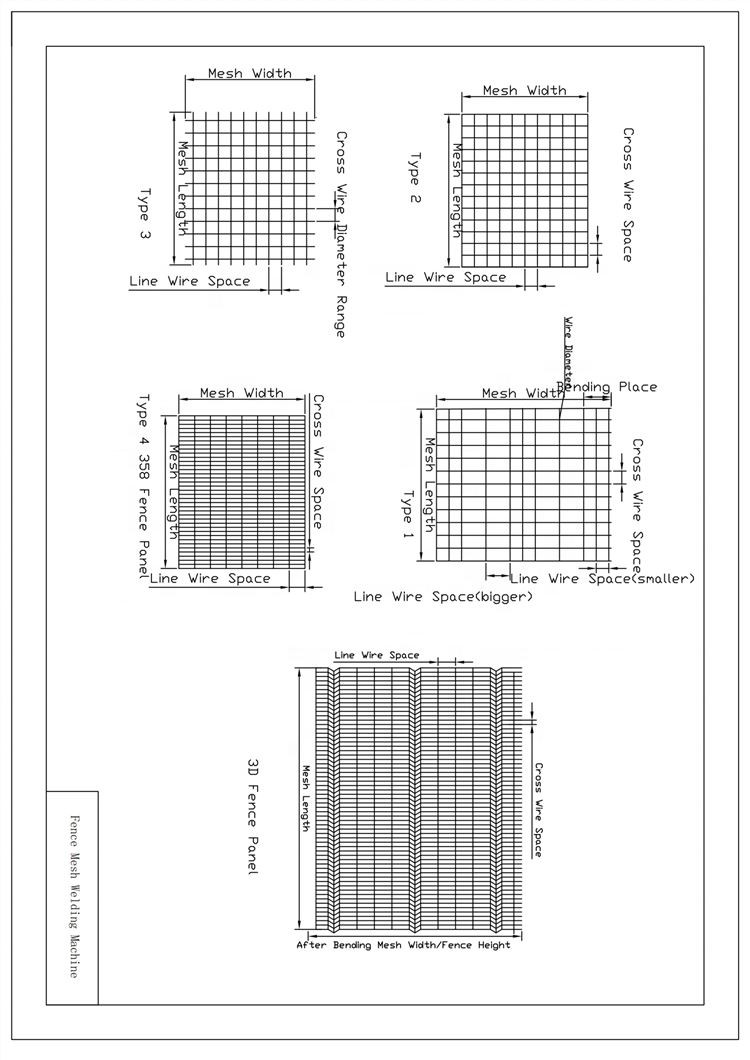

Picture Example:
 |
 |
Lead Time:
| Quantity(Sets) | 1 - 1 | 2 - 3 | >3 |
| Est. Time(days) | 25 | 25 | To be negotiated |
Online Customization
Click the image below to start online customization for the design you want.
low price stable function 3d metal wire mesh fence panel welding machine for sale
Product Description
| Wire Diameter | 3.0-6.0mm |
| Welding Points | 48 |
| Width of mesh | max 2500mm or 3000mm |
| Line Wire Space | 50-250mm |
| Cross Wire Space | 50-250mm |
| Mesh produced form | in panel |
| Welding Speed | 50-70cross wires / min |
| Transformer | 125KVA*6(water cooling system) |
| Weight | 3500KGS |
| Voltage | 380V, 50Hz, three phrase or customized |
| Feeding cross wire | step motor hopper |
| Dimension | 5.7*3.5*1.8m |
| Welding time | 10ms~100ms |
Function features and advantages
1. Our fence mesh welding machine cent-control and welding time are composed of PLC program system. The input front-panel has two forms, touch screen and keyboard that makes the machine more intelligent and reasonable and it could press at one time, times welding.

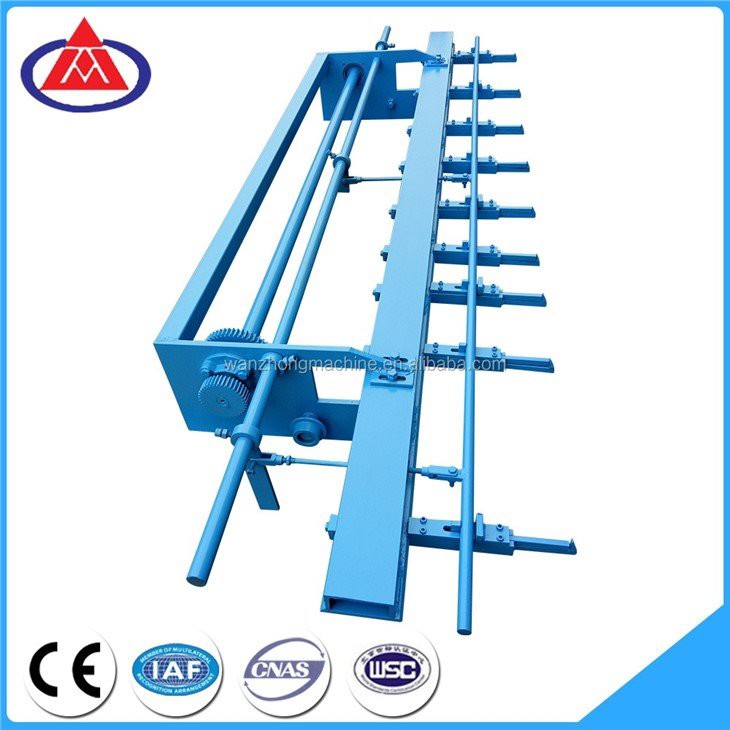

2. Per-cut line wire by manual feeding, per-cut cross wires auto feeding with the high production rate, which keep the mesh surface is very flat. The hopper adopts the steeping motor control , brake motor wheels and the cross wire will fallen automatically from the hopper.
3. Our transformers adopts big power at 125KVA every one, which can ensure the welding quality in good condition and adopt water cooling system. Our clients are very satisfied with our new development.
4. The greatest advantage is that you can adjust the distance of cross wire at random on the same one piece wire mesh sheet very easily, and only need to set the any space required on the touch screen.

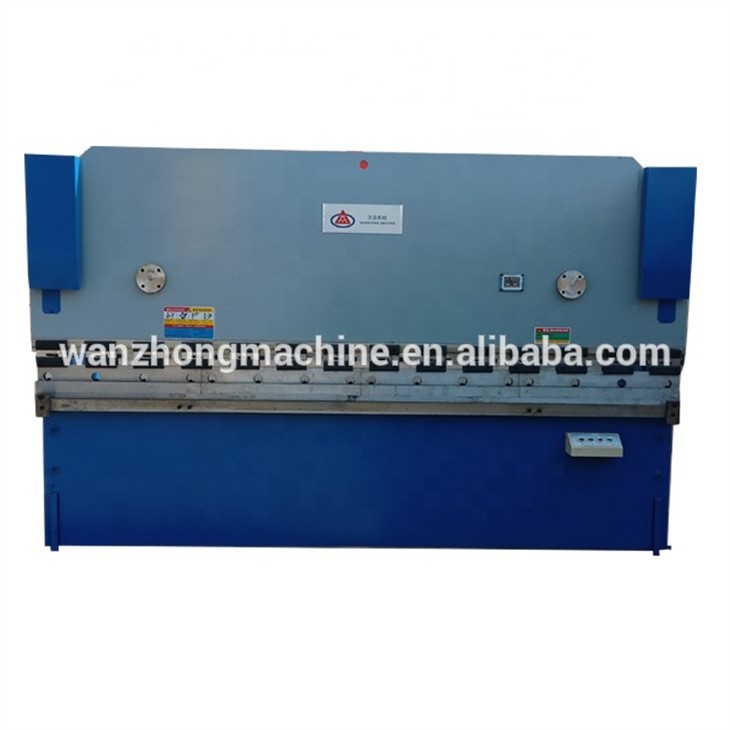

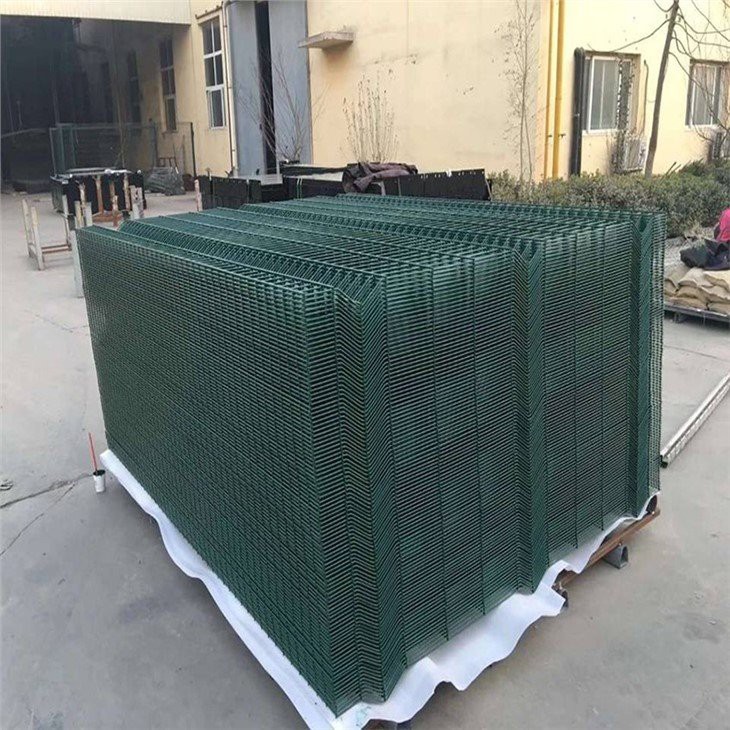

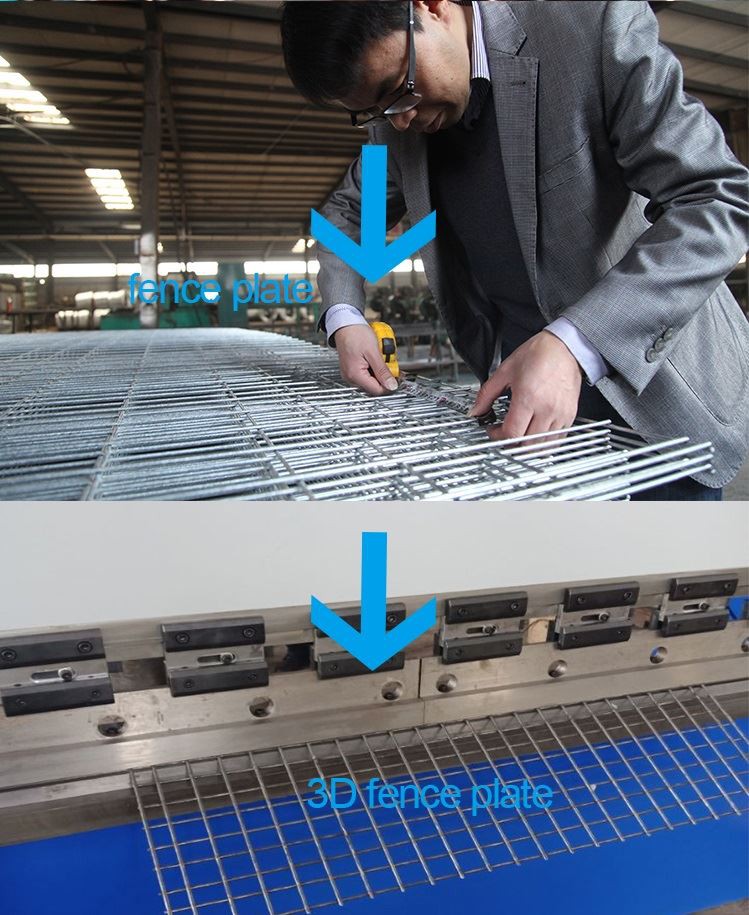

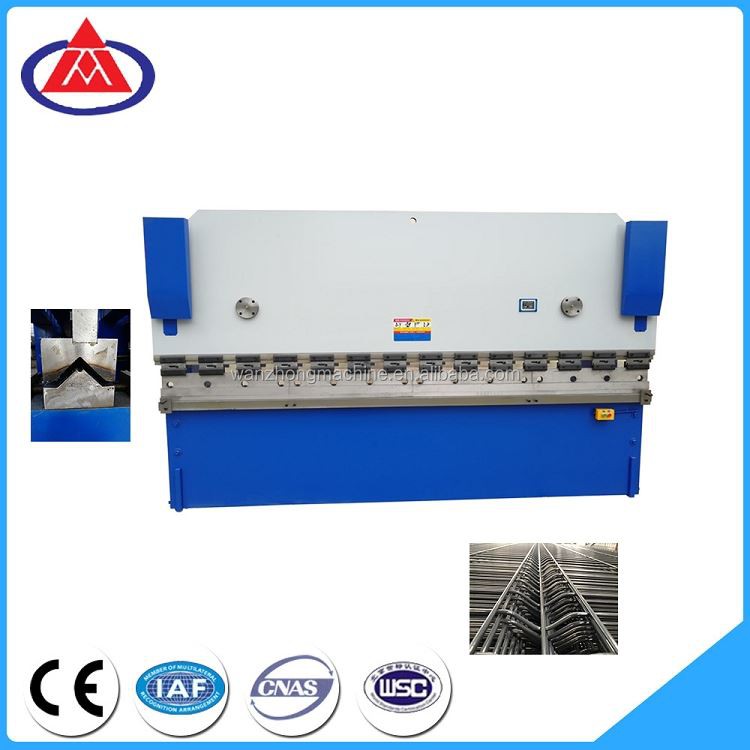

5. Equipped with fence bending machine can produce 3D fence panel, this fence quality is best fence products in the markets.

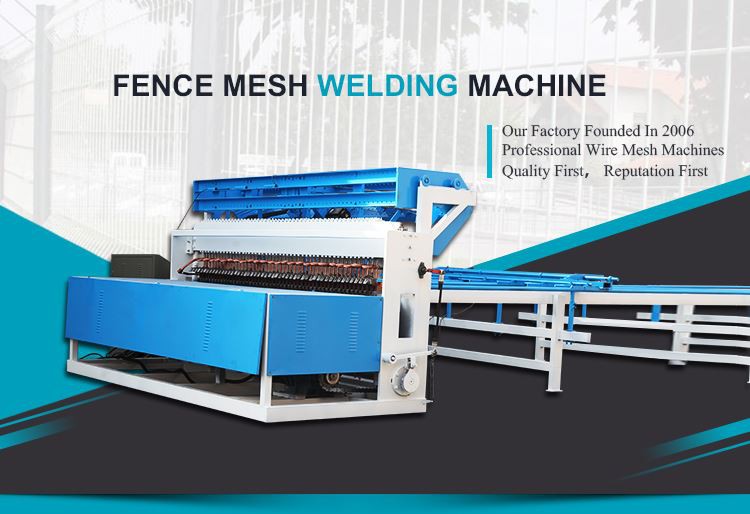

3d fence mesh welding machine including:
Related Products
Line Wire Automatic Sending Fence Mesh Welding Machine
Fully Automaic Fence Mesh Welding Machine
Fully Automatic 3d Fence Mesh Welding Machine
Packaging & Shipping
Our Services

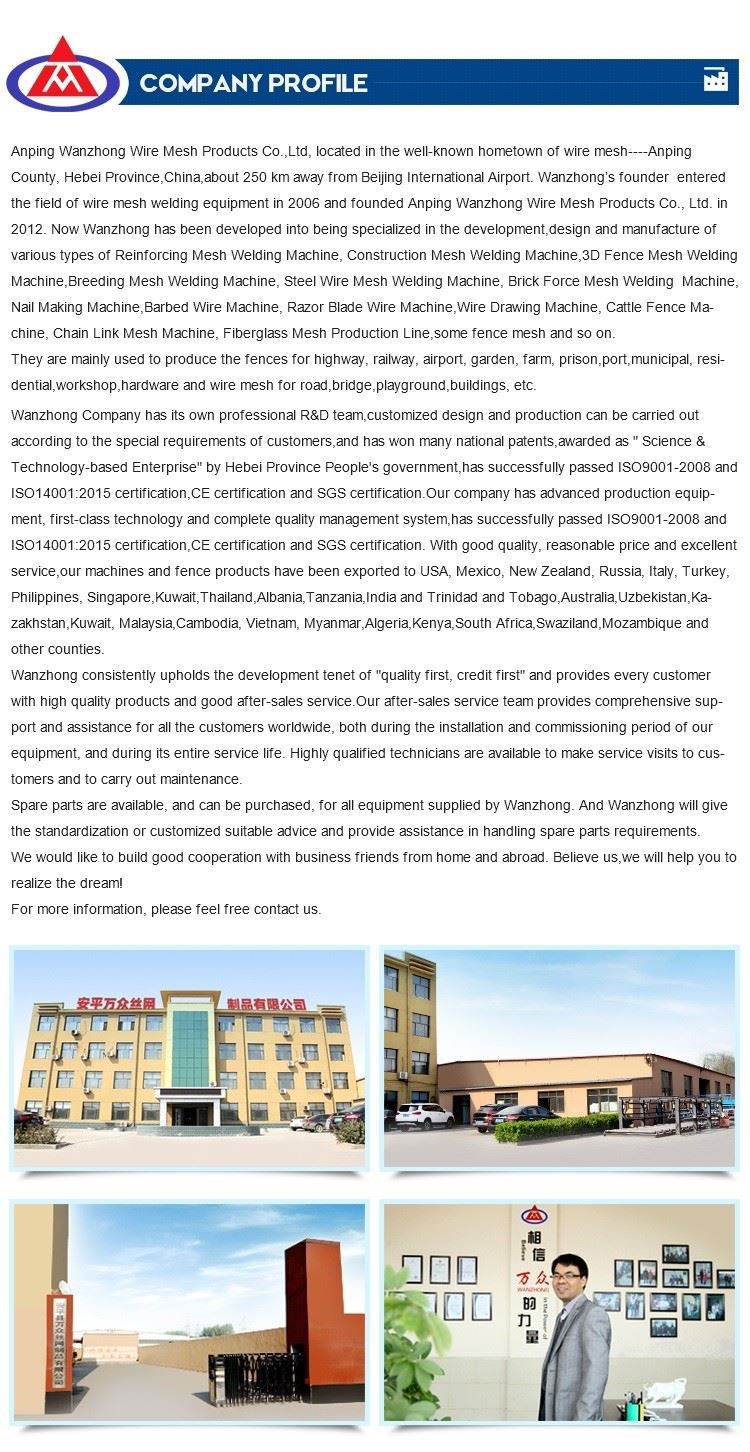

Company Information
Q: Are you manufacture or trading company?
A: We are manufacture, our factory set up on 2006, So we can give you a competitive price.
Q: Do you inspect the finished products?
A: Yes, we have QC departmengt, they will inspect the machine before shipping, to ensure there is nothing problem of the machine.
Q: Does the packing strong?
A: Yes, of course!All of our export packing, all to meet the export packing standards.
Q: How about after-sales service process?
A: When your machine has problem, cantact our sales and we will solve your problem as soon as possible.
Q: Where is your factory?
A: Our factory located in wire mesh industrial zone, anping county, hebei province, china, welcome to visit our factory!
Q: Do you have import & export right?
A: Yes, we have, so we can export the carton machines to you directly, without any trading company agency.
Our strength guarantees that we can achieve a complete set of services from R&D, design, production, etc., to meet customers' needs of 3d Panel Fence Mesh Welding Machine to the greatest extent. We hope to walk far ahead of the industry, keep pace with the times, and constantly create new performance, new brilliance and achieve new development. We hope to become an enterprise that is recognized by employees, trusted by shareholders and respected by society.
