Composition of Whole Production Line
|
No. |
Name of Each Part |
Quantity/Set |
|
1 |
Double Wire Fence Mesh Welding Machine: Including: Main Mesh Welding Machine 1Set Cross Wire Automatic Falling Hopper 1Pcs Line Wire Automatic Falling Hopper 1Pcs Line Wire Automatic Sending Device 1Pcs Pulling Mesh Device 1Pcs Operation Control Cabinet 1Pcs Screw Air Compressor and Air Dryer 1Pcs Air Storage Tank 1Pcs Cooling System 1 Pcs Level Spare Parts Box 1Pcs |
1 |
|
2 |
Wire Straightening and Cutting Machine |
2 |
Double Wire Fence Mesh Welding Machine Technical Parameters
|
NAME |
WZ-CNC2500D DOUBLE WIRE FENCE MESH WELDING MACHINE |
|
Welding Speed |
30-40 TIMES/MIN |
|
Max Mesh Width |
2500MM |
|
Max Pulling Mesh Length |
3000MM |
|
Welding Spots |
14 PCS |
|
Wire Diameter Range |
5-8MM |
|
Welding Transformers |
160KVA *14, 400V 50HZ, Three Phase installed with Water Cooling System |
|
Weight |
About 12T |
|
Materials |
Galvanized Wires, Common Cold Drawing Low Carbon Steel Wires |
|
Line Wires Feeding Way |
Pre-cut Wires, Falling Automatically From The Special Hopper |
|
Cross Wires Feeding Way |
Pre-cut Wires, Falling Automatically From The Special Hopper |
|
Control Way |
PLC and Touch Screen |
|
Welding Pressure |
Air Cylinder(Φ80*70mm), Air Supplying Pressure≥0.7Mpa |
|
Pulling Mesh Step Motor |
50N*M |
|
Falling Wire Step Motor |
20N*M |
Wire Straightening and Cutting Machine
|
NAME |
WIRE STRAIGHTENING AND CUTTING MACHINE |
|
Wire Diameter |
5-8MM |
|
Working Speed |
35-40M/MIN |
|
Max Cutting Length |
3000MM |
|
Straightening Motor |
4.0KW |
|
Cutting Motor |
2.2KW |
MG-10C Cooling Water System Main Parameters
|
1 |
Cooling Capacity |
24510Kcal/h, |
|
28.5kw |
||
|
2 |
Power |
10.833kw |
|
3 |
Refrigerant |
R22/R407C |
|
4 |
Compressor |
Hermetic Scroll Type Power: 5.4*2kw |
|
5 |
Evaporator |
High Efficiency Copper Tube Shell And Tube Type |
|
Water Flow: 5.31m3/h |
||
|
Water Tank Capacity: 200L |
||
|
Inlet/Outlet Diameter: DN32 |
||
|
6 |
Condenser |
High Efficiency Hydrophilic Aluminum Foll Finned Type Fan Power: 0.52*2kw |
|
7 |
Water Pump |
Power: 0.75kw |
Screw Air Compressor and Dryer
|
1 |
Type |
LW-50A |
|
2 |
Power |
37kw |
|
3 |
Working Pressure |
0.8MPA |
|
4 |
Air Flow |
5.8m3/min |
Storage Air tank
|
1 |
Type |
2m3 |
|
2 |
Design Pressure |
0.84MPa |
|
3 |
Proof Pressure |
1.05MPA |
|
4 |
Design Temperature |
150℃ |
Level Spare Parts
|
No. |
Item |
Quantity(pcs) |
|
1 |
Electrode block |
3 |
|
2 |
Induction Switch |
4 |
|
3 |
Starting Button |
1 |
|
4 |
Stopping Button |
1 |
|
5 |
Speed Regulation Button |
1 |
|
6 |
Emergency Stop Button |
1 |
|
7 |
Strong Magnetic |
10 |
|
8 |
Reversing Switch for wire straightening and cutting machine |
1 |
|
9 |
Installing Tools |
1 suit |
PICTURES OF EACH PART FOR WHOLE PRODUCTION LINE
|
Picture |
Name&Features |
|
|
1.Line Wire Automatic Falling Hopper and Cross Wire Automatic Falling Hopper They are both installed with the special inspection switch, If there is no drop wire, it will alarm automatically, then the worker can adjust it, then it can return to go on producing. This can greatly reduce the equipment failure and the wire mesh damage rate. |
|
|
2.Main Mesh Welding Machine The up and down electrodes all adopts special CuCrZr, the electricity conductivity, hardness and wear resistance are all very good, the changeover time of the longitudinal cell is reduced to about 30 seconds.Welding electrodes are driven by the special air cylinders, welding quality is good, spatter is little, reducing the mark of burning. |
|
|
3.Pulling Mesh Device Mesh drawing part adopts pneumatic hook clamping circulatory way, controlled by the servo motor, improve the accuracy and the speed. crashing and also mechanical damage from collision. |
|
|
|
|
|
4. Operation Control Cabinet Adopts Mitsubishi PLC and Delta Frequency, Panasonic Servo Motor, WEINVIEW touch screen, Schneider Low Voltage Electrical Appliances |
|
|
5.Screw Air Compressor and Air Dryer Luowei(Italy) They are mainly used to supply the dry air source for welding pressure air cylinder, pulling mesh hooks' air cylinder, patting wire air cylinder. |
|
|
6.Air Storage Tank It is mainly used to store the dry air source to satisfy all the air cylinders' need. |
|
|
7.Cooling System It is mainly used to reduce the temperature of the circulating water, and to cool the upper and lower electrodes and welding transformers, so as to prolong the service life of the welding transformers and the upper and lower electrodes. |
|
|
8.Wire Straightening and Cutting Machine It is mainly used to produce pre-cut wires, to satisfy line wires and cross wires for double wire fence mesh welding machines |
Packing and Loading Pictures
 |
 |
 |
|
Some Customer's Factories
 |
 |
 |
 |

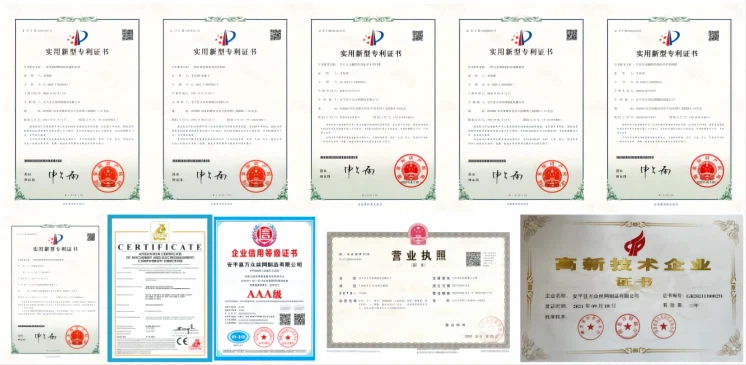

Some Certificate
The patent for double wires fence mesh welding machine
 |
