Quick Details
Condition | New |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Retail, Construction works , Energy & Mining |
Showroom Location | Viet Nam, Philippines, Peru, Indonesia, India, Mexico, Russia, Thailand, Kenya, UAE, Algeria, South Africa, Uzbekistan, Malaysia |
Video outgoing-inspection | Provided |
Machinery Test Report | Provided |
Marketing Type | New Product 2020 |
Warranty of core components | 2 years |
Core Components | PLC, Servo Motor |
Place of Origin | Hebei, China |
Brand Name | WANZHONG |
Primary Voltage | 24V |
Rated Duty Cycle | 80% |
Rated Capacity | 200KVA*12 |
Dimensions | 10.5*5.5*2.2m |
Usage | Welding all kinds of reinforcing mesh |
Warranty | 2 years |
Key Selling Points | Competitive Price |
Weight (KG) | 12000 KG |
After-sales Service Provided | Engineers available to service machinery overseas, Free spare parts, Field installation, commissioning and training, Field maintenance and repair service, Online support, Video technical support |
Name | Reinforcing Mesh Welding Machine |
Steel Wire Diameter Range | 6.0-12.0mm or 8.0-14.0mm |
Cross Wire Space | 100-300mm |
Line Wire Space | 100-300mm |
Welding Width | 2500mm/3000mm/3300mm |
Cooling System | Water Cooling |
Welding Speed | 50-60 Times/min |
Feeding Way | Pre-cut Wires |
Mesh Length | 1000-12000mm |
After Warranty Service | Video technical support, Online support, Spare parts, Field maintenance and repair service |
Local Service Location | Viet Nam, Philippines, Peru, Indonesia, India, Mexico, Russia, Thailand, Malaysia, Kenya, UAE, Algeria, South Africa, Uzbekistan |
Supply Ability
Supply Ability: 30 Set/Sets per Month brc mesh welding machine
Packaging & Delivery
Packaging Details
1.Main machine and accessory equipment will be packed with sketch film paper;
2.Control cabinet and spare parts will be packed with the wooden box;
3.Finally all the machines will be fixed with hornwoods and steel oil wire rope,ensure them stable and not move in the container.
Port: tianjin port or customized
Picture Example:
 |  |
Lead Time:
| Quantity(Sets) | 1 - 1 | 2 - 2 | >2 |
| Est. Time(days) | 35 | 35 | To be negotiated |
Product Overview
Hot Sale Pneumatic Reinforcing Steel Rebar Mesh Welding Machine
This machine is mainly used to produce all kinds of steel round bar or ribbed steel bar meshes.
FEATURES AT A GLANCE
The line wires feeding automatically
35mm thickness steel frame
The up and down electrodes all adopts special CuCrZr
The cross wires feeding from the special hopper
Welding pressure way adopts SDA80*70 air cylinders
Pulling mesh adopts servo motor backward and forward
Welding transformers installed water cooling system
 |  |  |

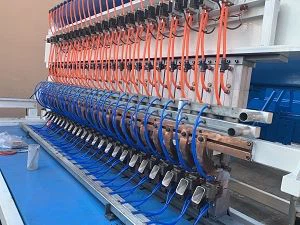

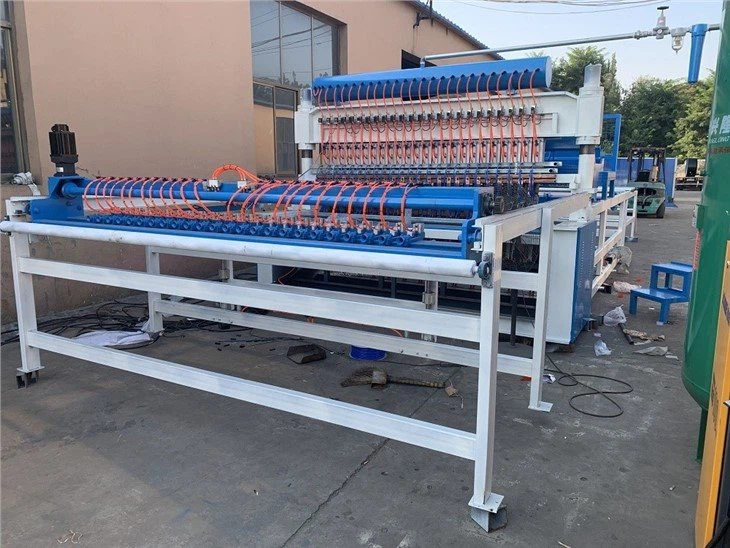

| Whole Machine | Line Wire Sending Device | Pressure Air Cylinders and Threading Wires Mouth |
PRODUCT SPECIFICATIONS
| No | Item | Data |
| 1 | Wire Diameter Range | 6.0-12.0mm or 8.0-14.0mm |
| 2 | Max Mesh Width | 2500mm or 3000mm or 3300mm or Customized |
| 3 | Line Wire Space | 100-300mm |
| 4 | Cross Wire Space | 100-300mm |
| 5 | Welding Transformers | 200KVA*12 or 200KVA*14 or 200KVA*16 |
| 6 | Welding Speed | 0-60times/min |
| 7 | Pulling Mesh Way | Servo Motor |
| 8 | Control Way | PLC and Touch Screen |
PRODUCT CONFIGURATION
 |  |  |

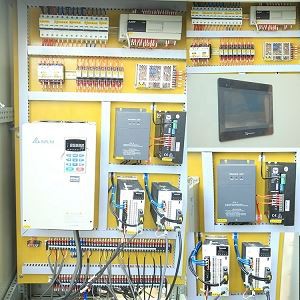

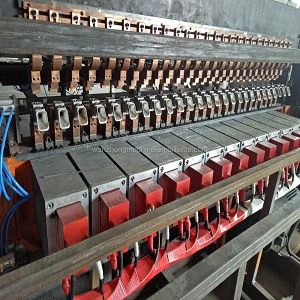

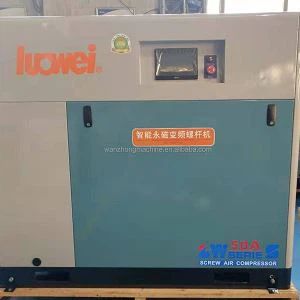

| Water Cooling System Transformers | Imported Frequency and PLC and Driver and Servo Motor | Screw Air Compressor |
SALES AND SERVICE NETWORK
Successful Project
 |  |  |
| Project in Thailand | Project in Malaysia | Project in Russia |
